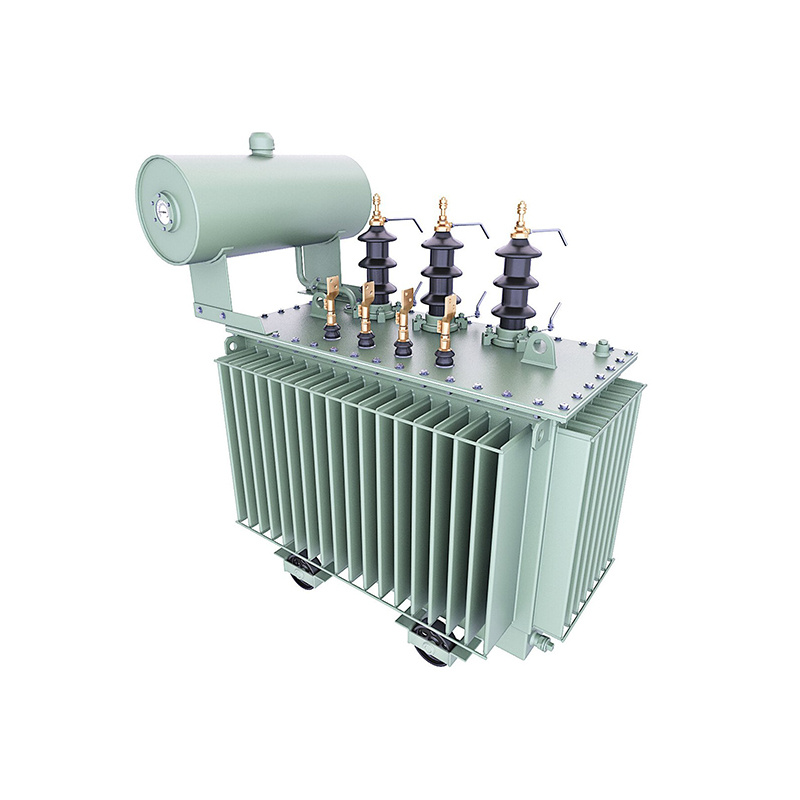

Three Phase Oil Immersed Distribution Transformer

Model Series
S13
Rated Voltage
2.5~40.5kV
Standard
IEC 60076-1/EN 50588-1
Warranty
Two years

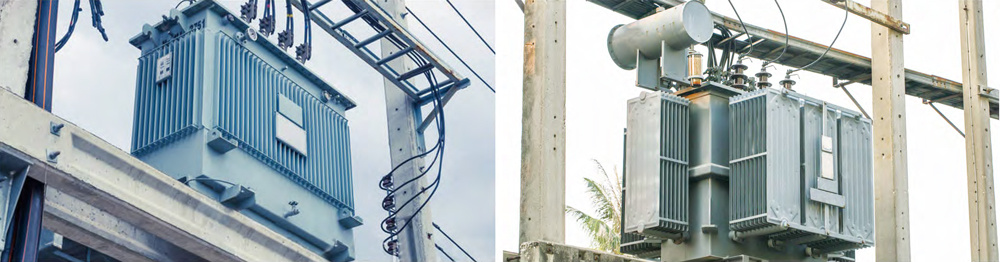

Application
Outdoor/Indoor
Contact Us
Download

Farady offers a complete range of distribution transformers designed to grant the reliability, durability, and efficiency required in utility, industrial, and commercial applications.

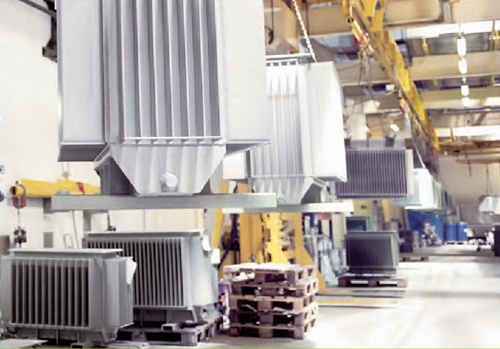

General

Farady's liquid-filled transformers are manufactured in accordance with the most demanding industry and international standards. Compliance with important standards, from IEC to VDE, is a matter of course, just as much as the exclusive use of high-quality materials, qualified employees implement the demanding standards in daily practice.

Standard Features

  1. Product Range:15kVA-10000kVA, up to 44kV
  2. System voltage: max. 36 kVA 200 BIL
  3. Coolers: corrugated wall or radiator
  4. Oil preservation: hermetically sealed or conservator/free breathing
  5. Tap changer: off-circuit or on-load
  6. Cooling medium: mineral oil, Midel
  7. Steel type core clamping system
  8. High voltage (HV) multilayer winding
  9. Low voltage (LV) foil winding or layer winding
  10. Winding materials aluminium or copper
  11. High temperature class transformers
  12. Low noise solution
  13. Efficient transformers with reduced losses
  14. Liquid-filled
  15. Used in special conditions
  16. Sophisticated facilities
  17. Usage of wooden case
  18. 3D package for drawings
  19. Special test like Zero Sequence Impendence test
  20. Cooling: ONAN, ONAN/ONAF, KFAF, KFW

Standard Features

  1. Suitable for indoor or outdoor application.
  2. Air temperature: Maximum temperature: +40℃; Minimum temperature:-30℃.
  3. Humidity:Monthly average humidity 95%;Daily average humidity 90%.
  4. Altitude above sea level:
    Maximum installation altitude:2000m
  5. Max wind speed:35M/s
  6. Ambient air not apparently polluted by corrosive and flammable gas, vapor etc.
  7. No frequent violent shake.
    Note: * Beyond those services condition should enquiry to manufacturer technical dept during order.

Custom Work- In Macrocosm And In Microcosm

  1. THE IRON CORE

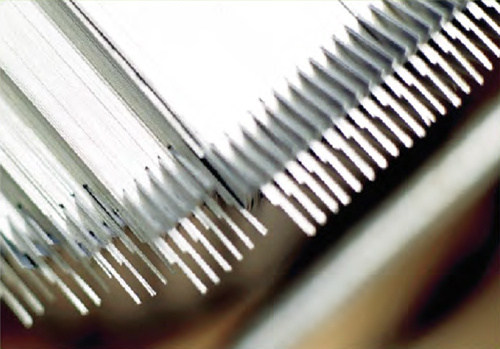

    Whether in design, manufacturing methods or materials the cores of Farady transformers represent the latest state of technology.The silicon alloyed electric sheet steel used is grain-oriented, cold-rolled and insulated on both sides, guaranteeing low losses and noise and these values are even improved by laser treatment. Numerically controlled cutting machines provide for careful treatment in the cutting process in order to avoid mechanical tension in the core and thus unwanted properties right from the beginning. Standard use of step-lap cutting additionally minimizes losses and noise.
  1. THE WINDING

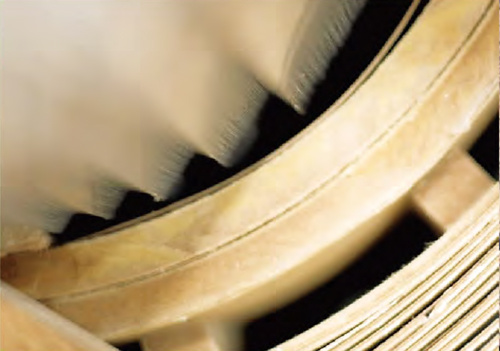

    The winding as the centerpiece of the transformer must be especially protected -both against high electrical stress due to external over voltages and against mechanical overloads by short circuits.Farady transformers are systematically designed to meet these requirements. The windings are made of copper or aluminum.Low-voltage windings are made of strip or flat wire, and the high voltage windings are manufactured from round or profile wire. The use of insulating paper that is partially coated with epoxy resin ("diamond-dotted paper") bonds the winding into a compact block while drying and increases the short-circuit capacity additionally.
  1. THE TANK
    Whether during transport or operation -the tank must be absolutely tight under mechanical stress. Preconditions to achieve this are constructional experience, the most modern calculation methods and high-quality welding work. Special attention is paid to corrosion protection. Pretreatment of the surface bysandblasting contributes to corrosion protection, just like multi coating with preset drying times for each layer. On request, hot-dip galvanization provides for even better protection. The tank must dissipate the entire heat loss of the transformer into the ambient air. This makes the volume of the transformer fluid change. In hermetically sealed transformers, the corrugated walls absorb the change in volume. In the case of expansion tank transformers, the conservator compensates this change. The sheet-steel lids of Farady transformers are bolted together with the tank or welded on request. In any case the steel thickness and the bracing is dimensioned in such a way that the lid withstands the stress of transport and operation.

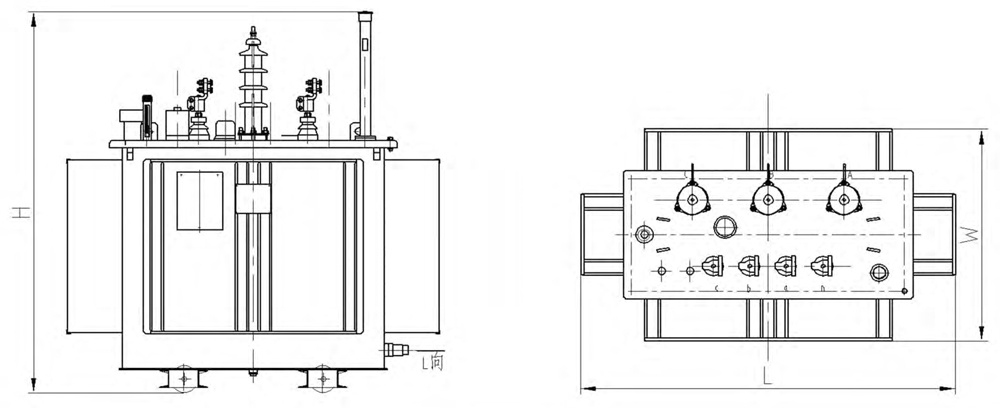

11KV Series

KVA VOLTAGE VECTOR GROUP LOSSES NO-LOAD CURRENT WEIGHT(KG) OVERALL DIMENSION MM
  H.V KV L.V V NO-LOAD LOSS LOAD LOSS OIL WEIGHT TOTAL WEIGHT L W H
25 6 6.3 10 10.5 11 13.2 380 400 415 433 YYNO DYN11 YZN11 100 550 2.3 55 230 720 440 855
30 130 630 2.1 75 305 750 500 990
50 170 910 2.0 80 405 800 480 1030
63 200 1090 1.9 95 455 830 615 1060
80 240 1310 1.9 105 510 840 580 1115
100 290 1580 1.8 120 530 890 645 1145
125 340 1890 1.7 130 670 910 600 1185
160 400 2310 1.6 140 810 910 700 1280
200 480 2730 1.5 160 890 1000 760 1240
250 560 3200 1.4 175 1020 1285 730 1290
315 670 3830 1.4 185 1170 1280 740 1385
400 800 4520 1.3 215 1410 1310 750 1432
500 960 5410 1.2 260 1645 1365 765 1510
630 1200 6200 1.1 310 2070 1485 815 1615
800 1400 7500 1.0 370 2445 1640 930 1590
1000 1700 10300 1.0 425 2800 1860 1120 1630
1250 1950 12000 0.9 480 3320 1860 1120 1830
1600 2400 14500 0.8 550 4175 1975 1175 1900

NOTE: *The above parameter is only subject to our standard.
Design, special requirement can be customized.

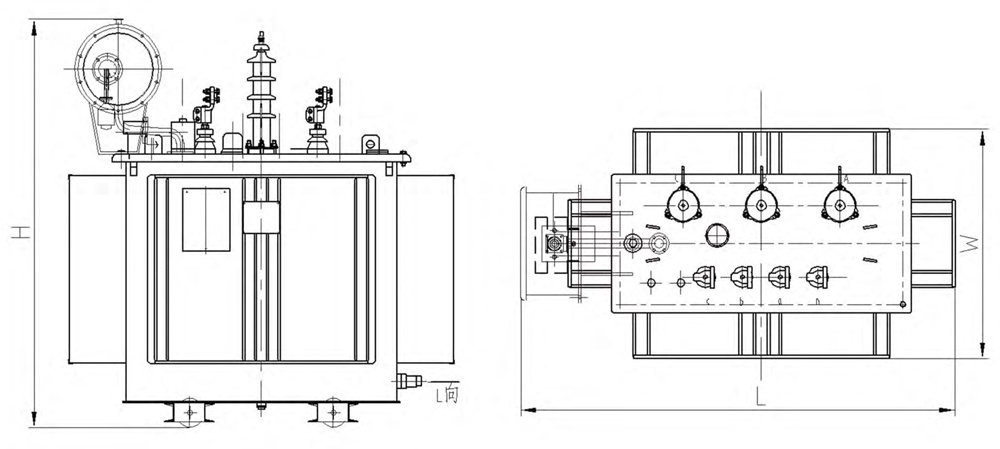

22KV Series

KVA VOLTAGE VECTOR GROUP LOSSES NO-LOAD CURRENT WEIGHT(KG) OVERALL DIMENSION MM
  H.V KV L.V V NO-LOAD LOSS LOAD LOSS OIL WEIGHT TOTAL WEIGHT L W H
25 20 22 24 380 400 415 433 YYN0 DYN11 YZN11 120 590 2.3 75 230 880 610 855
30 135 750 2.1 100 305 900 610 990
50 175 1050 2.0 185 515 920 610 1150
63 200 1260 1.9 195 550 920 630 1180
80 240 1510 1.9 200 600 930 650 1200
100 265 1820 1.8 210 695 950 680 1250
125 320 2180 1.7 235 810 960 780 1270
160 370 2670 1.6 255 950 1160 710 1330
200 450 3150 1.5 280 1065 1190 730 1340
250 530 3690 1.4 300 1200 1280 820 1360
315 635 4410 1.4 320 1360 1380 910 1390
400 755 5200 1.3 370 1580 1430 950 1470
500 900 6220 1.2 400 1790 1520 1020 1510
630 1070 7500 1.1 460 2100 1680 1150 1530
800 1295 9075 1.0 495 2420 1810 1280 1580
1000 1520 12460 1.0 590 3080 1840 1290 1690
1250 1800 14540 0.9 630 3460 1850 1300 1730
1600 2170 17545 0.8 710 4015 1920 1350 1790

NOTE: *The above parameter is only subject to our standard.
Design, special requirement can be customized.

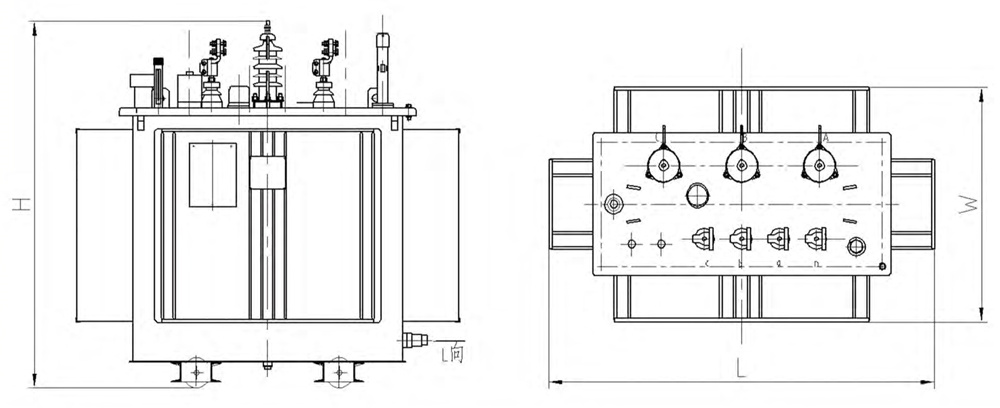

33KV Series

KVA VOLTAGE VECTOR GROUP LOSSES NO-LOAD CURRENT WEIGHT(KG) OVERALL DIMENSION MM
  H.V KV L.V V NO-LOAD LOSS LOAD LOSS OIL WEIGHT TOTAL WEIGHT L W H
25 30 30.8 33 35 38.5 380 400 415 433 YYN0 DYN11 YZN11 90 800 2.3 185 540 720 900 1200
30 100 1000 2.1 190 550 880 900 1200
50 210 1270 2.0 205 590 900 950 1450
63 230 1500 1.9 210 620 1000 950 1500
80 250 1750 1.9 225 660 1020 970 1550
100 290 2120 1.8 240 790 1050 1000 1600
125 340 2500 1.7 270 950 1080 1030 1630
160 360 2970 1.6 285 1020 1100 1060 1630
200 430 3500 1.5 325 1170 1130 1060 1670
250 510 4160 1.4 340 1340 1190 1160 1700
315 610 5010 1.4 400 1530 1260 1240 1790
400 730 6050 1.3 490 1780 1280 880 1900
500 860 7280 1.2 510 1960 1960 940 1920
630 1040 8280 1.1 600 2290 2020 1010 2010
800 1230 9900 1.0 660 2640 2070 1040 2150
1000 1440 12150 1.0 735 3100 2240 1200 2150
1250 1760 14670 0.9 830 3630 2300 1280 2250
1600 2120 17550 0.8 935 4235 2450 1510 2350

NOTE: *The above parameter is only subject to our standard.
Design, special requirement can be customized.
